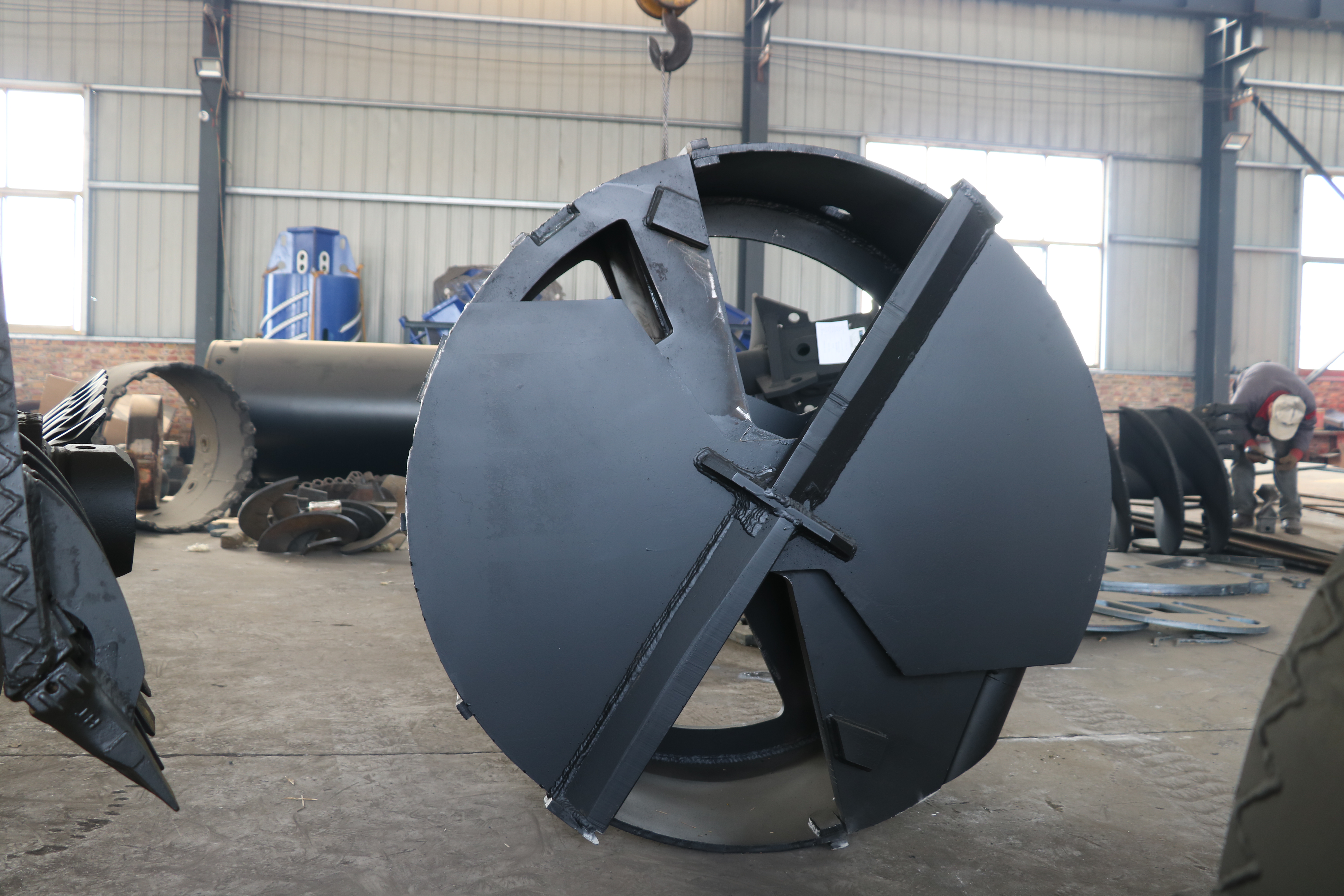

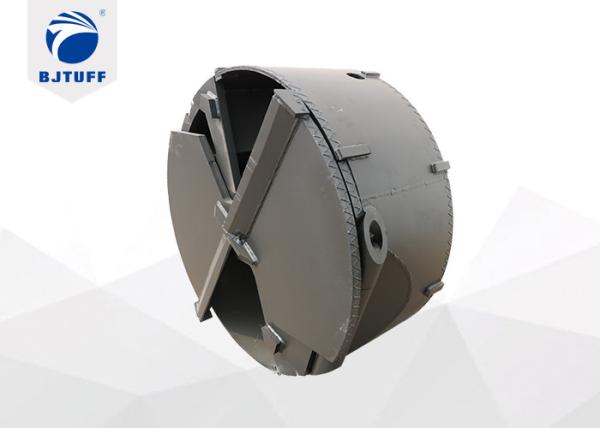

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil

Name: Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil
Brand: BJTUFF
Price: 1 USD

China Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil wholesale

Brand Name : BJTUFF

Model Number : 600mm-3000mm

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiated

Supply Ability : 200 Pieces/30 days

Delivery Time : 5-8 work days

Packaging Details : Plastic cases .

Barrel error less than : 3-5mm

Bottom Type : Double bottom and double cut

Kelly Box : 130*130, 150*150,200*200 etc

Process : Coated Sand Casting

Product Name : Drilling Bucxlet

Color : Black Or As Required

Contact Now

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil

Feature

1 Cylindrical barrel or Conical barrel(optional).
2 Throughout the ventilation hole.
3 Hard facing strips for wear protection.
4 Kelly box 130mm,150mm,200mm (optional).

Customizable Items

1. Cutting DIA. Custom : design various cutting diameter based on demand, like φ550,φ1350 etc.

2. Bottom Custom : single bottom and double bottom design as demand;

3. Kelly Box Custom : custom Kelly box size based on the Kelly bar, like 170*170, 150*150,250*250 etc;

4. Bottom Open Mechanic : half-automatic or manful mechanic bottom open system.

Cleaning Dia.	Shell HIT.	Shell OD.	Shell THK.	Fixed Bottom THK.	Rotate Bottom THK.	Teeth No.	Weight
φ600	800	520	16	40	40	/	495
φ800	800	720	16	40	40	/	693
φ900	800	820	16	40	40	/	724
φ1000	800	920	16	40	50	/	935
φ1200	800	1120	16	40	50	/	1240
φ1500	600	1420	16	40	50	/	1510
φ1800	600	1720	16	50	50	/	2350
φ2000	600	1920	20	50	50	/	3150
φ2200	600	2120	20	50	50	/	3570
φ2500	600	2420	20	50	50	/	4680
φ2800	600	2720	20	50	50	/	5330
Remark : All measurements are in milimeters, weight in kilograms.

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil

Product Tags:

Double Cut Cleaning Drilling Bucket

Double Bottom Cleaning Drilling Bucket

Spoil Cleaning Drilling Bucket

Double Cut Double Bottom Cleaning Drilling Bucket For Cleaning Spoil Images
